Software for thermal simulations

Detailed modeling and simulation



Electronic equipment and components are sensitive to excessive temperatures, regardless of whether the heat is generated by the equipment itself or by external influences.

It is therefore vital to include electronics cooling right from the start when developing new equipment or planning data centers or server rooms.

We offer you tailored software solutions which enable you to carry out comprehensive tests and simulations right from the earliest development stage – simply but reliably.

CelsiusEC – smart Equipment Simulation

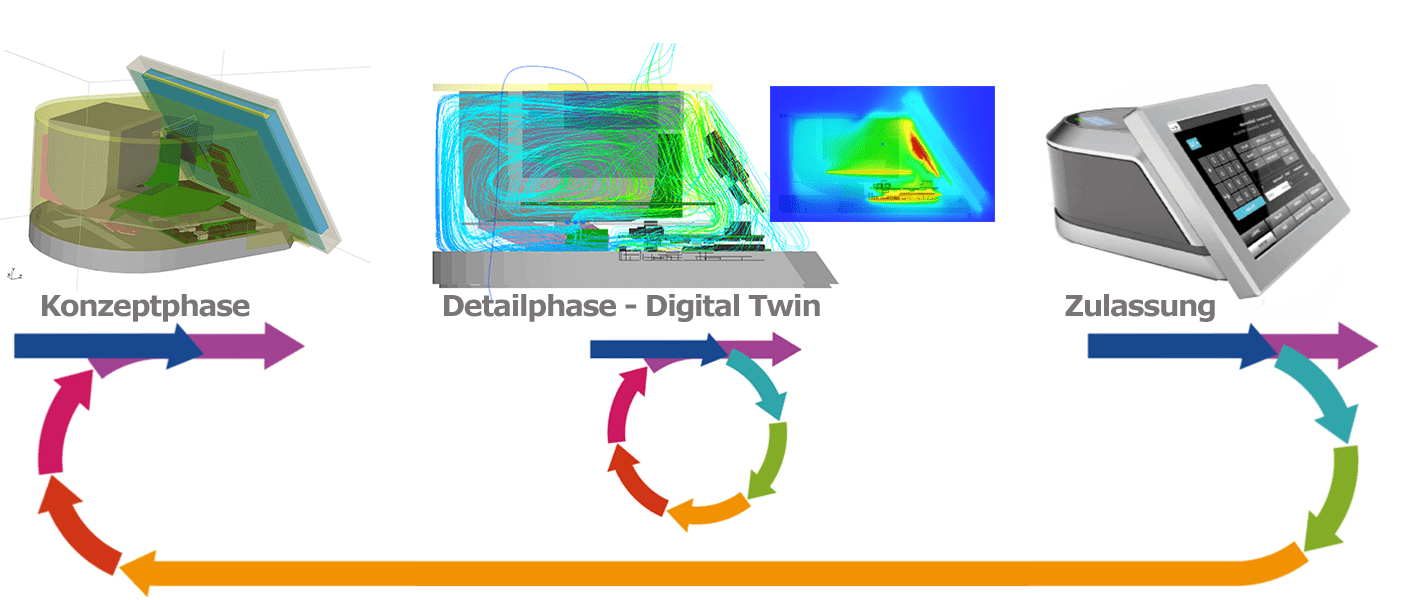

CelsiusEC is a CFD software tailored for the development of electronic devices. It enables the developer to predict the thermal challenges and to check the resulting solution concepts simulatively, from PCB conception through CAD-based enclosure design to the virtual prototype. Such specialised software continues to evolve through annual releases. Mostly, customers’ functional wishes or functional requirements of new markets are the innovation drivers for the software manufacturer.

CelsiusEC – smart Equipment Simulation

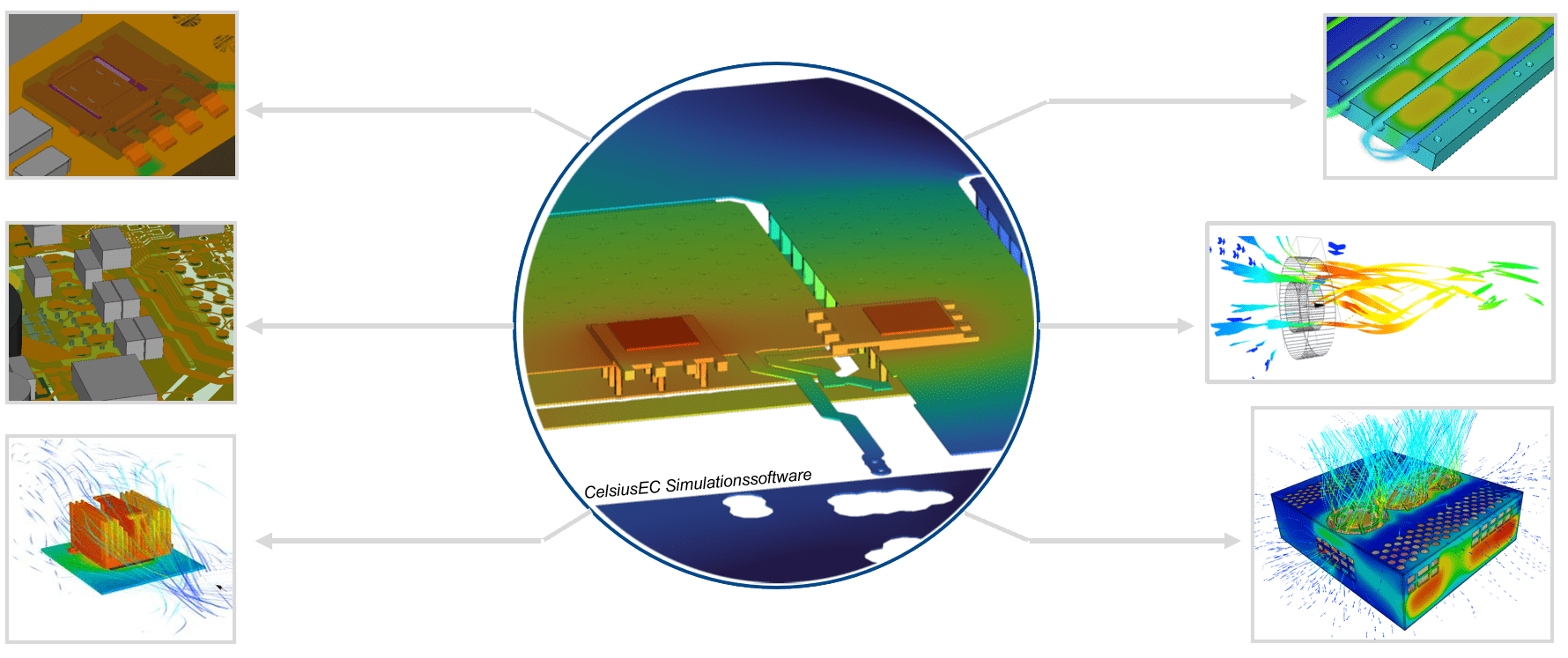

CelsiusEC is a CFD software tailored for the development of electronic devices. It enables the developer to predict the thermal challenges and to check the resulting solution concepts simulatively, from PCB conception through CAD-based enclosure design to the virtual prototype. Such specialised software continues to evolve through annual releases. Mostly, customers’ functional wishes or functional requirements of new markets are the innovation drivers for the software manufacturer.

Celsius EC user – required knowledge

Physical background on the subject of electronics cooling, i.e. knowledge of heat flows via heat conduction, convection and radiation. Understanding of the function of fans and the relationship of the fan operating point to the pressure drop in a device. Basic knowledge of a bit of material science and thermodynamics. This knowledge is imparted in approx. 1-2 days.

Simulation knowledge, i.e. what is behind the numerical method, what is the significance of the meshing and how is a CAD model with all the associated electronic details and power loss carriers implemented in such a tool for the solver. What results can be generated and how are the result graphics to be interpreted and used for optimisation. Another important part is the correct modelling in the simulation tool. One should learn to build correct thermal substitute models, which on the one hand reflect the thermal characteristics of an electronic component according to the data sheet, and on the other hand also describe detailed PCB layouts physically in such a way that many nodes in the solution grid are omitted. These details can be learned from an experienced trainer in approx. 1-2 additional days.

We also train!

CelsiusEC Anwender – erforderliche Kenntnisse

Physikalische Hintergründe zum Thema Elektronikkühlung, d.h. das Wissen über die Wärmeströme via Wärmeleitung, Konvektion und Strahlung. Das Verständnis für die Funktion von Lüftern und dem Zusammenhang des Lüfter-Arbeitspunktes zum Druckabfall in einem Gerät. Grundsätzliches Wissen über ein bisschen Materialkunde und Thermodynamik. Dieses Wissen wird in ca. 1-2 Tagen vermittelt.

Simulationskenntnisse, d.h. was steckt hinter dem numerischen Verfahren, welche Bedeutung hat die Vernetzung und wie wird ein CAD-Modell mit allen zugehörigen Elektronikdetails und Verlustleistungsträgern in solch einem Werkzeug für den Solver umgesetzt. Welche Ergebnisse kann man erzeugen und wie sind die Ergebnisgrafiken zu deuten und für die Optimierung zu nutzen. Auch ein wichtiger Part ist die richtige Modellierung in dem Simulationswerkzeug. Man sollte lernen, richtige thermische Ersatzmodelle aufzubauen, welche zum einen die thermische Charakteristik einer Elektronikkomponente laut Datenblatt widerspiegeln, und zum anderen auch detaillierte PCB-Layouts physikalisch so beschreiben, dass viele Knotenpunkte im Lösungsgitter wegfallen. Diese Details lernt man von einem versierten Trainer in ca. 1-2 zusätzlichen Tagen.

Wir bilden auch aus!

 Training

Knowing what matters

As specialists in electronics cooling, we not only sell software, we also know how to use it efficiently and successfully and can share our knowledge with you.

In bespoke workshops and training courses we teach your engineers, developers and IT specialists the skills they need to use the 6Sigma software. In addition we also offer individual training courses, based on the customer’s own product data.

So that you and your staff are always up-to-date on electronics cooling.

You can find out more about our training opportunities here.
